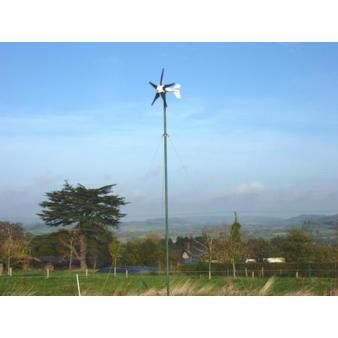

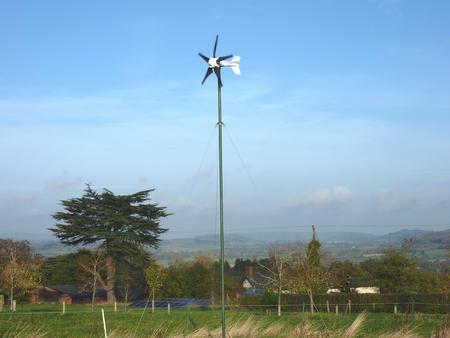

Tethering and secure fixing of wind turbines
Client
Leading Edge Turbines Limited
Brief
To provide a simple and easy to install solution for use in some difficult to reach locations - for both tethering and bracket fixings.
Solution
The Spirafix anchor is used in two ways.

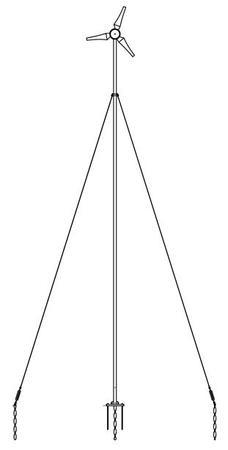

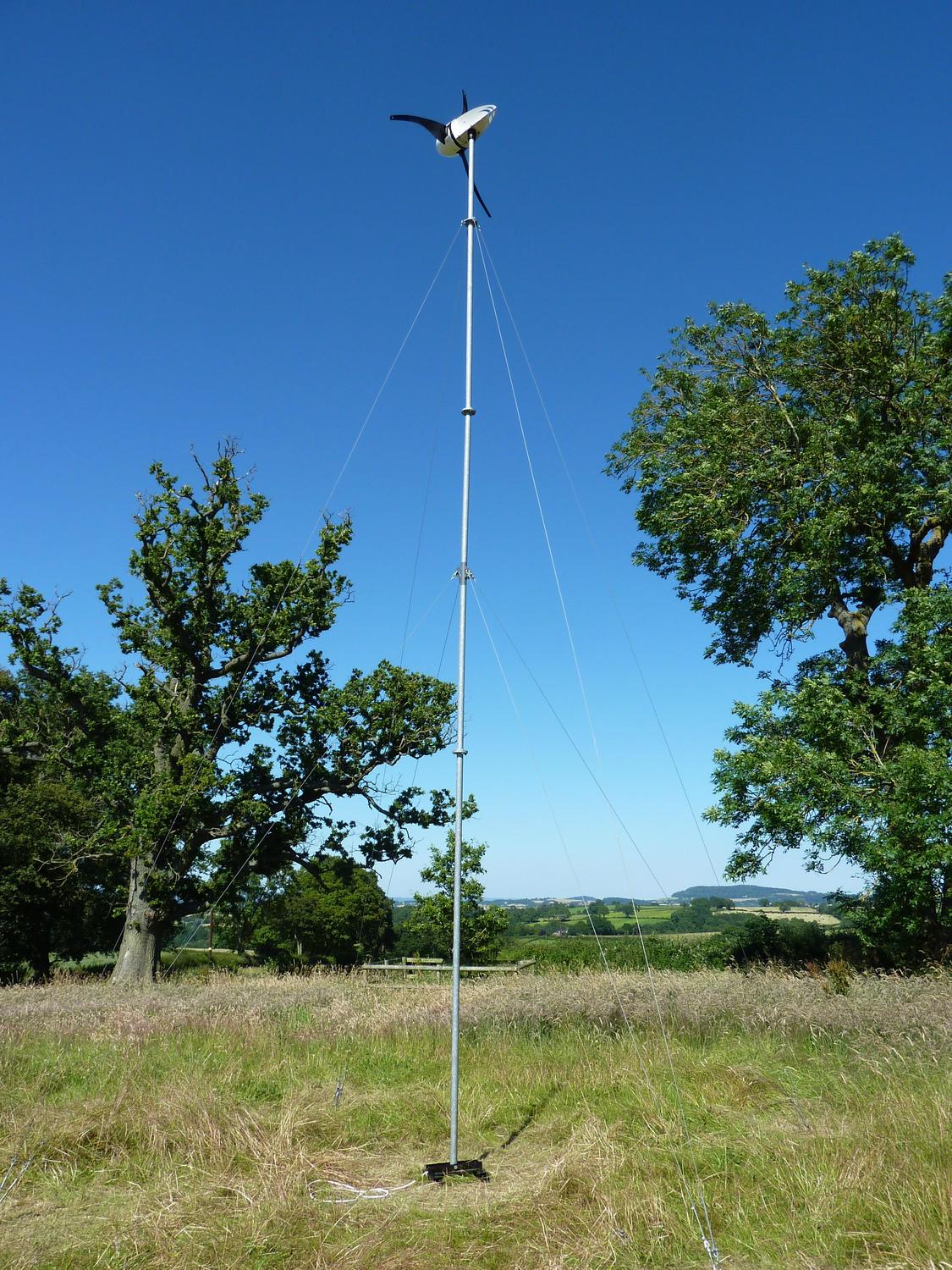

For a standard tethering application the anchor is fully installed by driving the anchor down into the ground using impact only movements (these anchors are not 'screwed in'). Once the anchor collar contacts the ground the anchor is considered fully installed. A turnbuckle is fixed to the top of the threaded head anchor and attached to the guy wire. Once the tension is correct the turbine is stable and fully functioning.

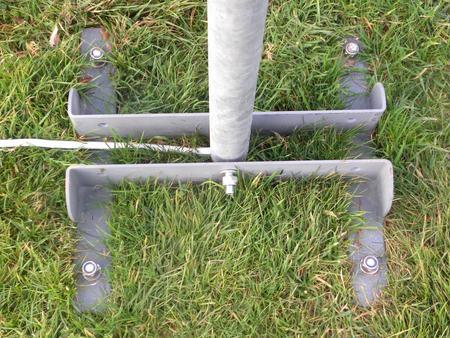

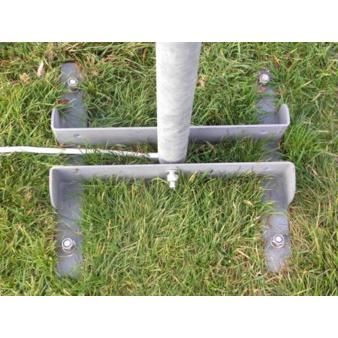

For a standard base plate application the anchor in fully installed and the base plates are simply fixed into positon using standard screws. The tower is then erected and guy wires used for additional stabilisation.
The Spirafix Ground Anchor used for these two methods of secure fixing is the SF40-08-0610 AC (threaded head).
